PXG Hammer Mill

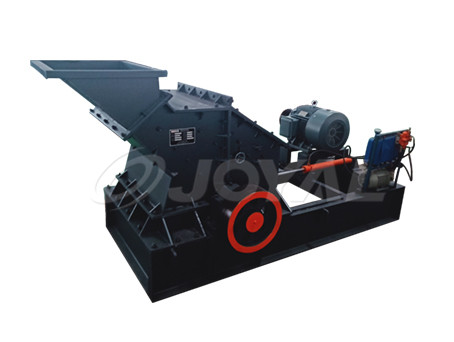

PXG Hammer Mill

PXG Hammer mill is a new generation of high-efficient sand making equipment, regarding the working principles of the various crushers and information feedback from user’s specific cooperation on site, with optimization design combining its advantages. Besides, it has many features of reliable performance, simple structure, convenient maintenance, high capacity and long service life of the hammer.

Applications: PXG Hammer Mill is widely used in industrial and mining enterprises such as metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, and is engaged in crushing and fine crushing of materials.


Application Industry

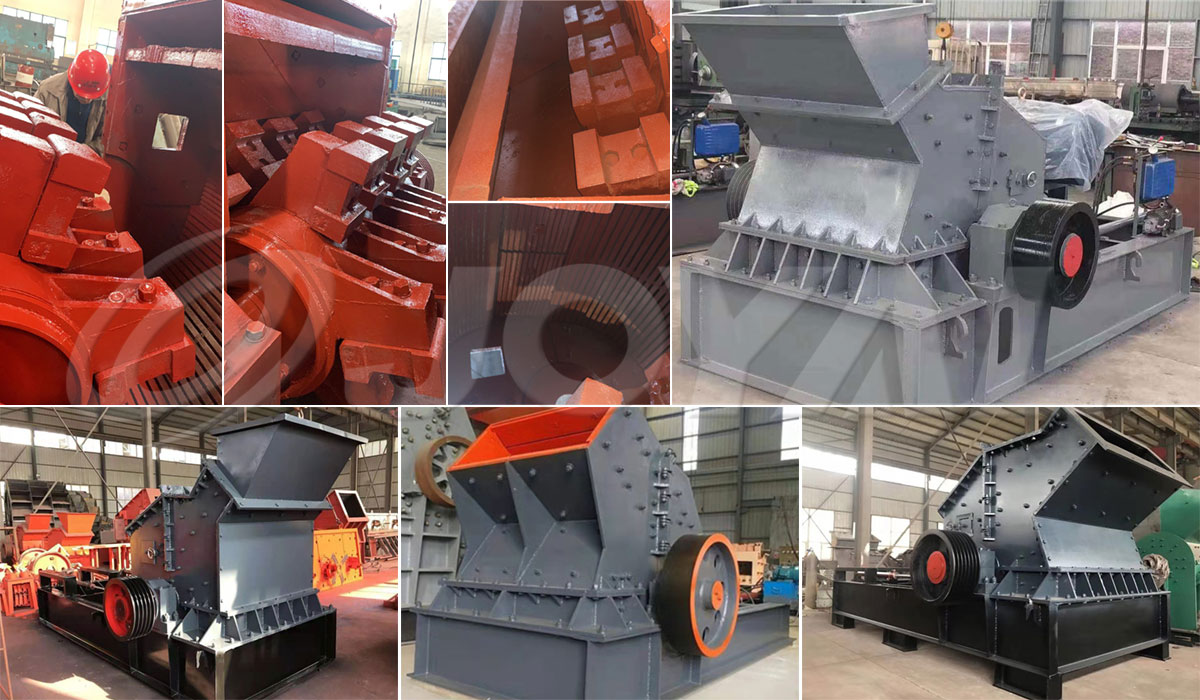

PXG Hammer Mill



{dede:field.title/}

Specifications - Technical Data

Model Rotor size(mm)  Opening size  (mm) Feeding size(mm) Discharge size(mm) Capacity (t/h) Motor power (kw) Weight (t) Dimension size (L*W*H/mm)
PXG8040 φ800x400 400x230 <120 <5 30-45 37 3.3 2850x1400x1700
PXG8060 φ800x600 600x230 <180 <5 35-55 45 3.7 2850x1600x1700
PXG8080 φ800x800 800x230 <180 <5 35-65 55 4.5 2850x1750x1700
PXG1010 φ1000x1000 1000x330 <180 <5 45-75 90 7.6 3500x2200x2000
PXG1012 φ1000x1200 1200x330 <180 <5 80-100 110 8.7 3550x2450x2200
PXG1212 φ1200x1200 1200x420 <180 <5 90-120 132 9.8 4050x2300x2240
PXG1214 φ1200x1400 1300x420 <180 <5 100-120 160 12 4050x2560x2200
PXG1414 φ1400x1400 1400x420 <180 <5 100-150 200 17 4650x2780x2500
PXG1416 φ1400x1600 1600x420 <180 <5 120-160 250 21 4650x2990x2500
PXG1616 φ1600x1600 1600x520 <190 <5 170-250 28 24 5150x3070x2900
