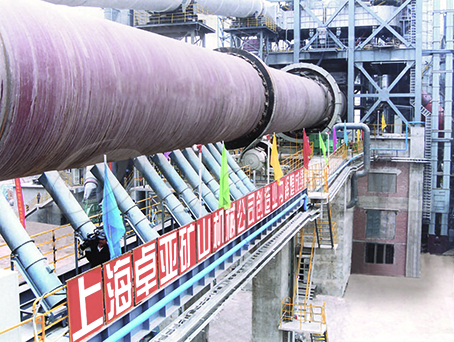

 Rotary Kiln

Rotary Kiln

Grinding

The rotary kiln is widely used in the fields of building materials, metallurgy, chemical industry, environmental protection, etc. It can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to the different materials processed.

Applications: Rotary kiln is widely used in building materials, metallurgy, chemical industry, environmental protection and other fields. It can be divided into cement kiln, metallurgical chemical kiln and lime kiln according to different materials. The cement kiln is mainly used for calcining cement clinker. In the process of non-ferrous metals and non-ferrous metallurgy, such as iron, aluminum, copper, zinc, tin, nickel, tungsten, chromium, etc., the rotary kiln is mainly used for sintering, roasting ore, concentrate. , middle, etc.; lime kiln calcined limestone.


Product Advantages

1. Good calcination, high product quality;
2. High capacity;
3. Simple structure, reliable performance;
4. Easy operation.

Application Industry

 Rotary Kiln

Working Principle

The rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to the different materials processed. The cement kiln is mainly used to calcine cement clinker; In the process of non-ferrous and ferrous metallurgy, such as iron, aluminium, copper, zinc, stannum, nickel, wolfram, chromium, etc., the rotary kiln can be used to sinter and roast ore, concentrate, intermedium, etc.; The lime kiln is mainly used to calcine limestones.

Specifications - Technical Data

Model Capacity(t/d) Gradient of kiln body(%) Support Quantity(PC) Catch Wheel Type Main Drive Power(kw) Auxiliary Drive Power(kw) Weight(t)
ø3.2×50 1000 3.5 3 Hydraulic 190 22 263
ø3.3×52 1200 3.5 3 Hydraulic 190 22 280.8
ø3.5×54 1500 3.5 3 Hydraulic 220 45 22
ø4.0×60 2500 3.5 3 Hydraulic 315 30 487.5
ø4.2×60 2800 3.5 3 Hydraulic 420 37 576.1
ø4.3×64 3200 4 3 Hydraulic 450 37 585
ø4.5×66 4000 4 3 Hydraulic 560 55 710.4
ø4.7×72 4500 4 3 Hydraulic 630 75 825
ø4.8×74 5000 4 3 Hydraulic 630 75 841
ø5.0×74 6000 4 3 Hydraulic 710 75 895
ø5.6×87 8000 4 3 Hydraulic 800 90 1201
