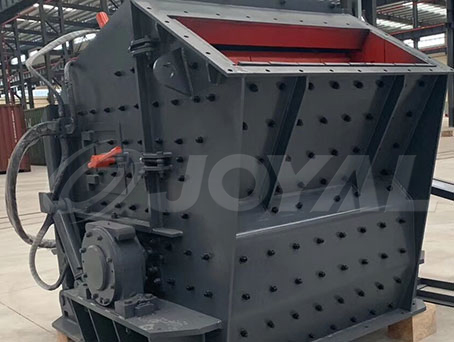

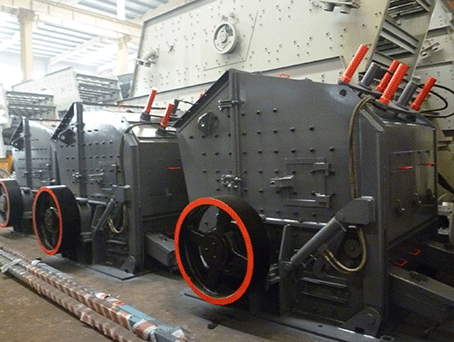

PFW Hydraulic Impact Crusher

PFW Hydraulic Impact Crusher

Crusher

PFW Hydraulic impact crusher features heavy duty rotor design, unique hammer locking system, replaceable wearing parts, and easy maintenance. PFW Hydraulic impact crusher is also low in operation cost and outstanding in performance, and the final output is very good in cubical shape.

Applications: The European version of the series of impact crushers are widely used in highway construction, water conservancy projects, building gravel, and mechanism sand processing.


Product Advantages

01

This machine is made up of advanced materials, the heavy type rotor design, the unique fixing device for hammers, make it more reliable.

02

The machine equips with hydraulic control device, easily to adjust the discharge opening size. The automatic hydraulic jacking device help to replace the hammer and impact plate quickly.

03

The two cavity chamber is suitable for coarse and medium coarse crushing. While the three cavity crushing pretty good for find and super-fine crushing.

04

It is adopted of the integral cast steel structure on bearing seat, to make it matches well with the crushing frame and increase the radial strength of it.

Application Industry

PFW Hydraulic Impact Crusher

Working Principle

PFW Hydraulic impact crusher improves the adjusting device, the operation becomes more convenient. The tri – cavity makes excellent capability in the fine crushing and super fine crushing Plant. The bi-cavity can simplify the process flow in the coarse crushing Plant.



{dede:field.title/}

Specifications - Technical Data

Tri-curtain cavity hydraulic impact crusher:
S model Spec. Feed opening size (mm) Max. feeding size (mm) Capacity (t/h) Power (KW) Weight (t) Overall dimension (mm)
PFW 1210Ⅲ Ф1150X960 570X990 250 70-120 90-110 15.0 2550X1870X2100
PFW 1214Ⅲ Ф1150X1400 570X1430 250 90-170 132-160 19.0 2550X2310X2100
PFW 1315Ⅲ Ф1300X1500 625X1530 300 180-270 160-200 25.0 2960X2570X2380
PFW 1318Ⅲ Ф1300X1800 625X1830 300 220-300 200-250 30.0 2960X2870X2380

Two-curtain cavity hydraulic impact crusher:
P model Spec. Feeding size (mm) Max. feeding size (mm) Capacity (t/h) Power (kW) Weight (t) Overall dimension (mm)
PFW 1210II Ф1150X960 1100X1030 400 90-160 90-110 17.0 2400X1870X2550
PFW 1214II Ф1150X1400 1100X1430 500 130-200 132-160 22.0 2400X2310X2550
PFW 1315II Ф1300X1500 1200X1530 600 180-320 160-200 29.0 2700X2570X2800
PFW 1318II Ф1300X1800 1200X1830 700 240-400 200-250 34.0 2700X2870X2800
