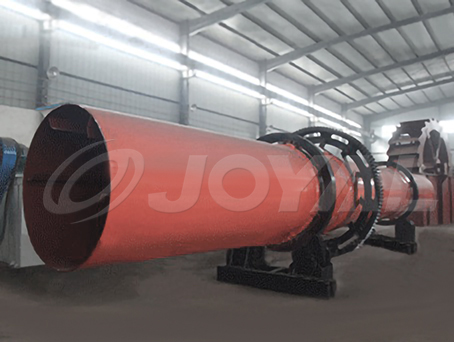

Rotary Dryer

Rotary Dryer

Grinding

The rotary dryer is mainly used in the fields of building materials, mineral processing, metallurgy, chemical industry, etc., it can be used to dry materials with specified moisture and size.

Applications: Tumble dryer is mainly used in building materials, mineral processing, metallurgy, chemical industry, etc.


Product Advantages

1.Wide applicability, available for many kinds of materials.
2.Simple operation, stable performance;
3.Low investment, high efficient and capacity;
4.Low cost in maintenance

Application Industry

Rotary Dryer

Working Principle

The rotary dryer is mainly used in the fields of building materials, mineral processing, metallurgy, chemical industry, etc., it can be used to dry materials with specified moisture and size.

Specifications - Technical Data

Model Capacity(t/h) Main Motor Power(kw) Weight(t)
Φ1.2×12 2.5-4 11 13.5
Φ1.5×12 4-6 11 18.5
Φ1.5×15 5-8 18.5 20.5
Φ2.2×12 13-15 22 31.5
Φ2.2×14 14-16 22 33.4
Φ2.4×14 16-20 45 42.8
Φ2.4×18 16-20 45 42.8
Φ3×20 25-30 55 77.8
Φ3×25 28-34 55 87.5

Main Specifications of Triple-cylinder Dryer
Item Model Outer Cylinder Dia.(m) Length of Outer Cylinder(m) Cylinder Cubage(m3) Original Moisture of Sand(%) Final Moisture of Slag(%) Original Moisture of Slag(%) Final Moisture of Sand(%) Capacity(t/h) Motor Power(kw)
Slag Sand
Φ2.2×7.0 2.2 7.0 26.59 10-12 1 8-10 0.5-1 20-25 22-26 5.5×4
Φ2.6×7.0 2.6 7.0 31.84 10-12 1 8-10 0.5-1 26-29 26-32 5.5×4
Φ2.8×7.0 2.8 7.0 36.93 10-12 1 8-10 0.5-1 28-32 30-35 7.5×4
Φ3.0×7.0 3.0 7.0 52.68 10-12 1 8-10 0.5-1 40-45 45-48 11×4
Φ3.2×7.0 3.2 7.0 56.27 10-12 1 8-10 0.5-1 42-46 45-50 11×4
Φ3.6×8.0 3.6 8.0 81.38 10-12 1 8-10 0.5-1 55-65 60-70 15×4
Φ3.8×8.0 3.8 8.0 90.68 10-12 1 8-10 0.5-1 65-70 71-75 18.5×4
