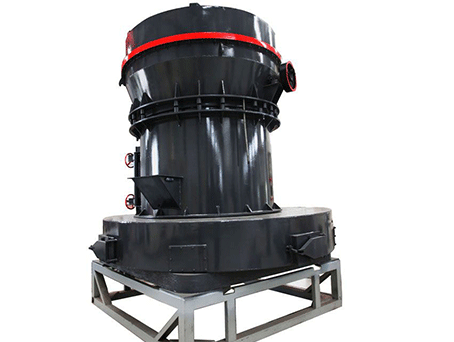

Three-ring Micro Powder Mill

Three-ring Micro Powder Mill

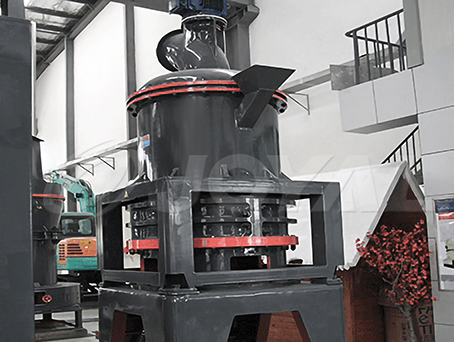

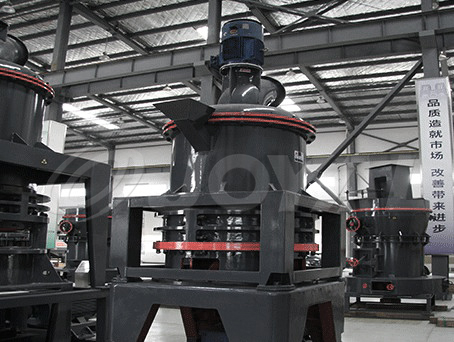

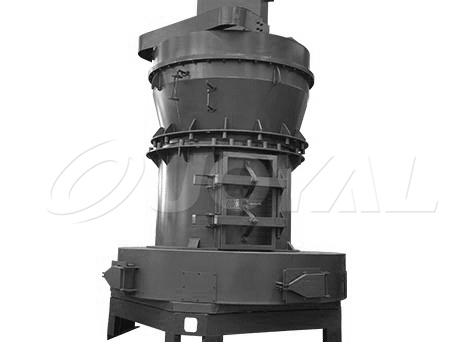

The JOYAL Three-ring Micro Powder Mill(ultrafine mill) is for super-fine grinding materials with hardness less than 6 in Moh’s scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble,talcum, barite, gypsum, dolomite, bentonite mud,mica, pyrophyllite, sepiolite, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment and so on. The granularity of the end products is 325-2500 meshes (0.044-0.0055mm).

Applications: Calcium carbonate pulverization processing, gypsum powder processing, power plant desulfurization, non-metallic mineral powder production, coal powder preparation, etc.

Product Advantages


High-efficiency and low consumption With the same end-products fineness and motor power, its output can be doubled comparing with Jet Mill, Mix Mill, and Ball Mill.


More secure and Reliable. There is no rolling bearings and screws in the grinding cavity, so no problems caused by the wear of bearings or screws.


Longer service life for wearing parts. The grinding roll and ring are made of special alloy. Generally, their service life is more than one year, but in certain condition which could up to over 3 years, like when it processes calcium carbonate and Calcite.


Good performance on Cleansing and Environment Protection. This machine greatly reduces the industrial dust pollution and noise by applying Pulse dust collector and muffler, which reaches the National Standard.

Application Industry

Three-ring Micro Powder Mill

Working Principle

General:Crushing -- Grinding -- Selecting -- Collecting
Detailed:The main bearing and each dial are driven by electromotor of main equipment through reducer, and numbers of rings and rolls which are rolling in the ring channels are driven by dial through plunger.
After being crushed by hammer crusher, the big materials become small ones and they are sent to the storage bin by elevator. The electromagnetic vibrating feeder sends them to the middle of first dial evenly; the materials will be driven to the edge of dial by centrifugal force, and fall into the ring channels and are pressed, crushed and ground by the grinding rings and rolls. Then the materials fall into the second and third ring and crushed and ground.
The high pressure centrifugal blower inhales air from the outside and blow the materials which are ground in the third ring to powder Separator. The rotating turbo in the powder Separator makes the coarse materials return to the mill and reground, while the fineness mixes with the air and be drawn to the cyclone and be discharged from the discharging valve which is in the bottom of it. The air which mixed with very little fineness are purified by impulse dust catcher and discharged by blower and muffler.


Specifications - Technical Data

Model Ring Diameter (mm) Ring Numbers (layer) Roller Numbers (piece) Main Shaft Speed (r.p.m) Input Size (mm) Output Size (mm/mesh) Capacity (t/h) Overall Dimension (L*W*H,m)
ZYM80 800 1+2 20 (6+7*2) 230-240 ≤10 0.074-0.005
0.4-5 13.9*4*6.2
ZYM90 900 3+1 29 (3*7+8) 200-220 ≤10 0.074-0.005
0.6-7 14.7*4.8*7.2
ZYM100 1000 2+2 28  (6*2+8*2) 180-200 ≤15 0.074-0.005
1-10 18*4.6*8.6
ZYM125 1250 2+2 32 (7*2+9*2) 135-155 ≤15 0.1-0.006
2-16 14*9*10.25
ZYM168 1680 2+2 44 (10*2+12*2) 120-130 ≤20 0.1-0.009
4-30 26.3*7.5*11.9

Power Parameter

Unit: KW Main Unit Classifier Blower Crusher Bucket Elevator Belt conveyor Feeder Spiral Conveyor Discharging Valeve Air Compossor
ZYM80 75 18.5 45 18.5 3 2.2 3 0.75*2 11
ZYM90 45*2 18.5 55 18.5 3 2.2 3 0.75+1.1 15
ZYM100 132 30 75 18.5 4 2.2 3-4 1.1*2 22
ZYM125 185 37-15*4 45*2-55*2 45 4 3 3*2 1.1*2 15*2-37
ZYM168 315 18.5*5 75*2-90*2 45 7.5 3 5.5*2 0.75*2+1.5*2 55

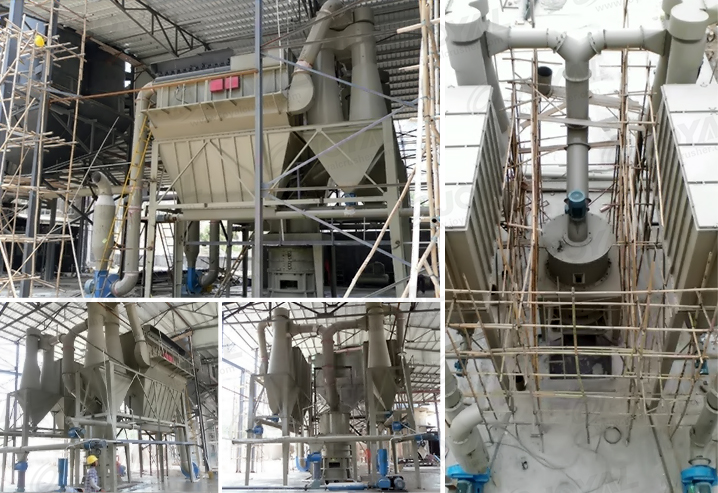

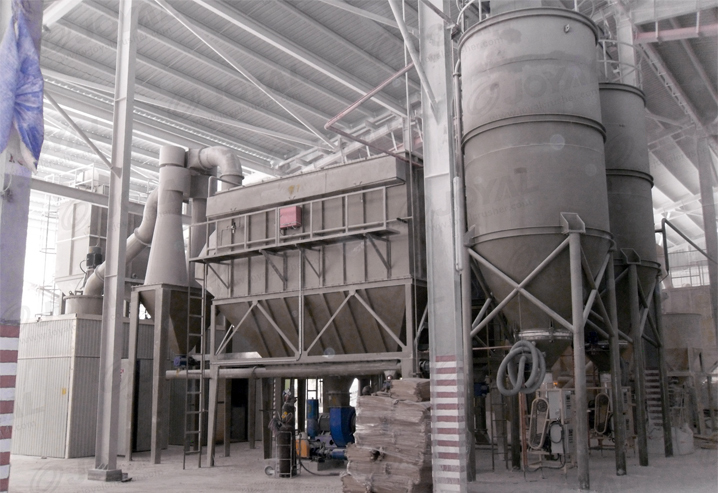

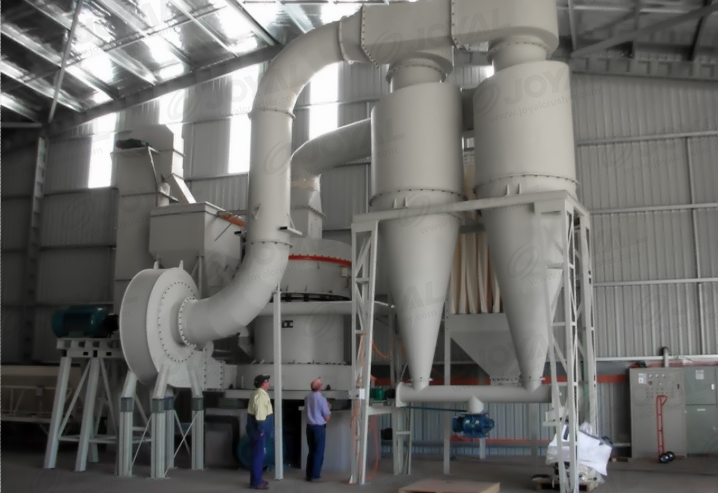

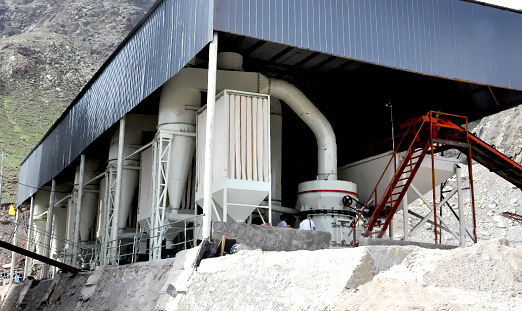

Recent Customers' Projects
