ZYS Cone Crusher

Crusher

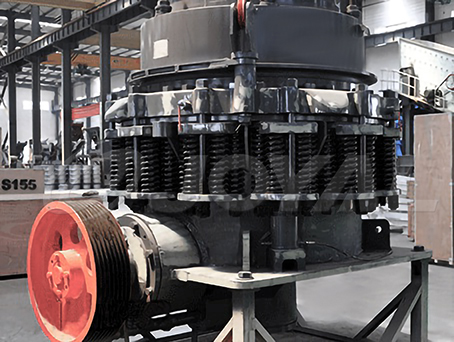

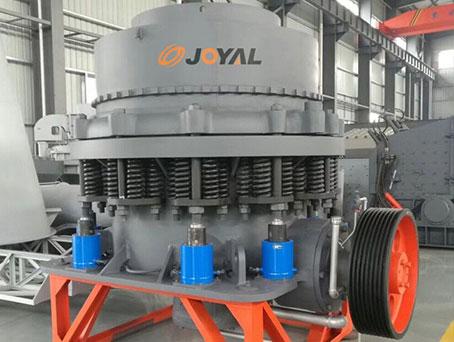

The JOYAL ZYS Cone Crusher is a high-performance model optimized and improved on the basis of PY Series Spring Cone Crusher. The ZYS Cone Crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgies and so on. The ZYS Cone Crusher can crush materials with middle and high hardness, such as, metal ore, basalt, granite, limestone, cobblestone, sandstone and so on.

Applications: ZYS cone crusher is widely used in mining, building materials, metallurgy and other industries.

E-mail: joyal@crusherinc.com

Product Advantages

01

Customers can choose suitable crushing chamber of each model according to the material feature, fineness of the end product and particle size requirement.

02

Unique dustproof and sealing structure extend working life of lubricants and other spare parts.

03

The key parts are made of special materials to make the strong crushing force possible.

04

Equipped with long crushing arm to ensure huge stroke, strong crushing force, and high capacity.

05

Hydraulic cleaning system keeps the cavity clean, and it’s easy to operate, thus reducing the stoppage of machines.

06

Reliable performance, low investment, and long service life of quick-wear parts.

Application Industry

ZYS Cone Crusher

Working Principle

During the operation of ZYS Series cone crusher, driven by the electric motor ,the eccentric shaft bush will rotate with the triangle belt, small and big bevel gear, big bear, transmission shaft .Driven by the eccentric shaft bush ,the cone crusher axis will move circularly . ,which makes the mantle close or leave the cone from time to time .And then the materials will be crushed by continuously compacting, striking, and crooking in the circle crushing cavity between the fixed and moveable cone. After several times’ repeating, the materials will be crushed to the required size and then they will be discharged by the discharging opening.

{dede:field.title/}

Specifications - Technical Data

Model	Cavity Size	Max Feeding Size(mm)	Adjusting Range of Output Size(mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)	Overall Dimension (mm)
ZYS36B	Fine	85	9~22	45~91	75	14.5	2656×1746×2410
	Coarse	150	13-38	59~163
	Extra Coarse	152	25-38	118~163
ZYS36D	Fine	35	3~13	27~90		15
	Medium	65	5~16	36~100
	Coarse	85	6~19	59~129
ZYS51B	Fine	115	13~31	109~181	160	26.5	2958×2354×3156
	Medium	178	16~38	132~253
	Coarse	205	19~51	172~349
	Extra Coarse	220	25~51	236~358
ZYS51D	Fine	54	3~16	36~163		27
	Medium	76	6~16	82~163
	Coarse	89	8~25	109~227
	Extra Coarse	113	16~25	209~236
ZYS66B	Fine	178	16~38	181~327	250	51	3941×2954×3771
	Medium	205	22~51	258~417
	Coarse	228	25~64	299~635
	Extra Coarse	313	38~64	431~645
ZYS66D	Fine	60	5~13	90~209		52
	Medium	76	6~19	136~281
	Coarse	113	10~25	190~336
	Extra Coarse	125	13~25	253~336
ZYS84B	Fine	236	19~38	381~726	315	90	4613×3251×4732
	Medium	284	25~51	608~998
	Coarse	314	31~64	789~1270
	Extra Coarse	391	38~64	880~1361
ZYS84D	Fine	89	5~16	190~408		92
	Medium	113	10~19	354~508
	Coarse	151	13~25	454~599
	Extra Coarse	172	16~25	508~653
