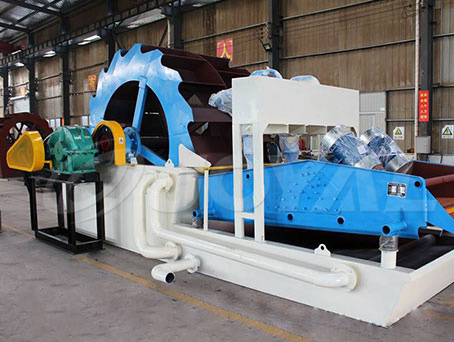

ZY sand washing & recycling machine is designed based on sand washer and sand recycling system and adopted foreign advanced technology. This machine main parts
include: XSD wheel! sand washer, high frequency dewatering screen, high pressure cyclone, cleaning tank, return box. high pressure wearable slurry pump. motors, etc. The
machine has simple structure and multiple function, and is widely used for crushed sand,river sand, lake sand or sea sand washing. screening. recycling and dewatering.

Applications: The product is suitable for the cleaning of the sandstone used in construction sites, sand and gravel plants, hydropower stations, concrete dam sites, post and telecommunications poles, and the “seven” sand for foundry, quartz sand for glassworks and pressure sand for oil well backfilling. Grading and dehydration.


Product Advantages

1. Higher sand quality, lower moisture content.
2 Recycled fine size 0. 16-3mm sand, lower mud content.
3. Compact structure and easy installation.
4. High productivity and 95% of fine panicles in the materials can be recycled.
5. Solve cleaning problem of sedimentation tank and improve economic performance at the same time.

Working Principle

Washing. The bucket s driven by the motor through the reducer and rotates in circle. There are many sands storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves. sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.

Recycling: Rowing slurry water is extracted by slurry pump, fine sand is collected by the Centrifugal force of the cyclone, then fed to the polyurathane screen from the apex spray. The 0.16- 3mm fine sand and water are efficiently separated through the vibrating screen.Dewatering coarse sand 3 -10mm and fine sand (0.16- 3mm) are sorted onto poyurathane vibrating screen for dewatering.



Sand washing & recycling machine

Specifications - Technical Data

Model Impeller diameter(mm) screen area(mm) Cyclone type water consumption(m³/h) Feeding size (mm) Capacity(t/h) Motor power(kw) Weight (kg) Dimension size (mm)
ZY26-35-1224 2600 1200*2400 FX350 80-120 ≤10 50-80 28.4 4935 5800*5200*2750
ZY26-55-1530 2600 1500*3000 FX250*2 100-140 ≤10 80-100 33.5 5392 5800*5560*2750
ZY30-55-1530 3000 1500*3000 FX250*2 100-140 ≤10 80-100 39 7328 6700*5560*3100
ZY30-65-1530J 3000 1500*3000 FX300*2 120-180 ≤10 80-120 47 7500 6700*5560*3600
ZY30-75-1836 3000 1800*3600 FX350*2 160-240 ≤10 100-140 63 9761 7331*5560*3370
ZY30-120-1842 3000 1800*4200 FX300*4 240-360 ≤10 100-140 82 10565 7950*5560*3370
ZY30-75-1836D 3000 1800*3600 FX350*2 160-240 ≤10 100-140 59 9669 7420*5560*3670
ZY30-75-1842D 3000 1800*4200 FX350*2 160-240 ≤10 100-140 59 10615 8020*5560*3670
ZY36-100-1836D 3600 1800*3600 FX250*4 200-280 ≤10 100-140 70 13363 8120*5560*4100
ZY36-100-1842D 3600 1800*4200 FX250*4 200-280 ≤10 100-140 70 14040 8590*5560*4100
ZY36-100-1836J 3600 1800*3600 FX250*4 200-280 ≤10 120-160 74 13634 8120*5560*4100
ZY36-100-1842J 3600 1800*4200 FX250*4 200-280 ≤10 120-160 74 14180 8590*5560*4100
ZY36-100-1848J 3600 1800*4800 FX250*4 200-280 ≤10 120-160 74 14630 9190*5560*4100
ZY36-100-2442J 3600 2400*4200 FX250*4 200-280 ≤10 150-200 81 15120 8680*6450*4100
ZY36-120-2448J 3600 2400*4800 FX300*4 240-360 ≤10 150-200 97 15480 9280*6450*4100
