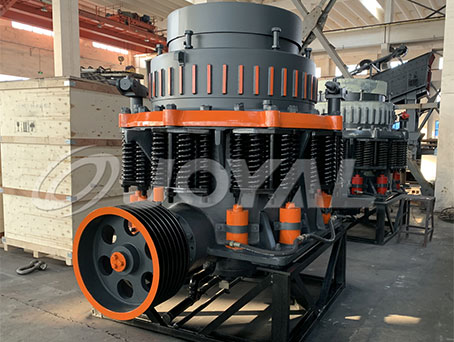

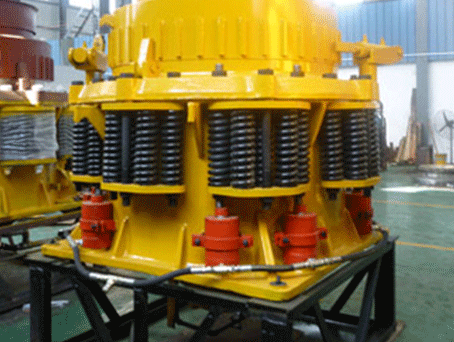

ZYC Cone Crusher

ZYC Cone Crusher

Crusher

ZYC Cone Crushers is widely used in metal and non-metallic mines, cement, construction, sand and metallurgical industries. It is applicable to materials like iron ore, nonferrous metal ores, granite, limestone, quartzite, sandstone, pebbles and so on.

Applications: ZYC series compound cone crusher can be widely used in metal and non-metal mines, cement plants, construction, sand and stone metallurgy and other industries.


Product Advantages

01

High performance and laminated crushing principle, to produce more cubic shape materials, less flake shape products.

02

Hydraulic production device can release the chamber automatically when non-broken materials come into the breaking chamber. Also the thin oil lubrication system well guarantee the reliable operation.

03

The interlocked lubrication unit is equipped with a main motor for additional safety;

04

If the crusher stops under loading condition, the hydraulic cleaning system can clean up the chamber quickly to reduce the downtime.

05

The cone and bowl liner can be disassembled easily from top and upper side, much more easier for further maintenance.

06

It is maximizing the performance to apply to all kinds of crushing: from coarse to fine crushing; from stationary crushing plant to mobile crushing plant; various crushing chamber available to meet client’s different demands.

Application Industry

ZYC Cone Crusher

Working Principle

When cone crusher work, by the motor through V-belt, host pulley, drive shaft, a small bevel gear, bevel gear driving a large external brass rotation axis line of cone crushing force copper out by rotating the swing next move, making the broken wall near the surface from time to time and mortar wall from time to time to leave the rolling surface, so that the material in the fixed cone and fixed cone crushing cavity composed of the ring constantly under attack, pressing and bending and breaking. After repeated squeezing, shock and bending, the material crushing to the required size, the lower discharge.



{dede:field.title/}

Specifications - Technical Data

Standard Chamber   Min discharge
opening (mm)
Power Capacity(t/h) Weight(kg)
Max feedsize Close discharge size(mm)
(mm) 6 10 13 16 19 22 25 38 51 64
ZYC600 C 95 10 37-45   20 25 30 35 45 50 76     5300
M 72 6 37-45 18 20 25 30 35 40 45 60     5300
ZYC1000 C 160 13 90-110     80 100 135 150 175 235     10800
M 115 10 90-110   65 75 90 120 135 150       10800
F 80 8 90-110 52 62 72 78 115           10510
EF 50 6 90-110 50 55 65 70 102           10510
ZYC1200 C 180 13 110-132     115 135 150 180 200 260     15500
M 130 10 110-132   100 110 120 135 165 175       15500
F 90 10 110-132   80 105 110 140           15500
EF 60 6 110-132 60 74 105 110 130           15500
ZYC1380 C 215 19 185-220         200 220 260 350 440   26300
M 160 16 185-220       155 180 200 220       26300
F 115 13 185-220     150 190 210 230         26300
EF 76 8 185-220   122 148 185 200           26300
ZYC1500 C 235 22 185-220           265 310 420 525 580 37750
M 175 19 185-220         215 240 265 320     37750
F 130 13 185-220     180 210 235 255 275       37750
EF 90 10 185-220   148 178 200 220           37750
ZYC1680 C 267 22 250-300           330 390 525 655 725 44300
M 203 16 250-300       230 270 300 330       44300
F 140 13 250-300   185 225 265 340           44300
EF 95 10 250-300   180 220 260 335           44300
