Belt Conveyor

Belt Conveyor

feeding conveyor

The JOYAL Belt Conveyor is used for transferring material in bulk or container. The belt conveyor is widely used in the industry of mining, building materials, metallurgy, coal and so on.

Applications: Tape conveyors are widely used in mining, building materials, metallurgy, coal and other industries to transport loose materials or pieces.


Product Advantages

1.The belt conveyors made of SJLC(heat and cold resisted material) can be operated in the temperature situation ranging from -20℃ to +40℃. The temperature of transferred material by this belt conveyor should be lower than 50℃.
2. Simple in structure, easy to maintain, long service life, high transfer capacity.

Working Principle

Belt conveyor is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. When the materials fall down on the conveyor, the roller under the belt will drive the belt forward. In this way, it conveys the material.



Belt Conveyor

Specifications - Technical Data

Model Belt Width(mm) Nominal Power(kw) Conveyor Speed(m/s) Capacity (t/h)
B400 400 <12m=2.2 0.8-2.0 40-80
12m-19m=3
20m-25m=4
B500 500 <12m=4 0.8-2.0 78-191
12m-19m=5.5
20m-30m=7.5
B650 650 <12m=4 0.8-2.0 131-323
12m-19m=5.5
20m-30m=7.5
B800 800 <10m=5.5 1.0-2.0 278-546
10m-15m=7.5
16m-20m=11
21m-25m=15
26m-30m=18.5
B1000 1000 <10m7.7 1.0-2.0 435-853
10m-15m=11
16m-23m=15
24m-30m=22
B1200 1200 <10m=11 1.0-2.0 650-1020
10m-17m=15
18m-22m=18.5
23m-26m=22
27m-30m=30

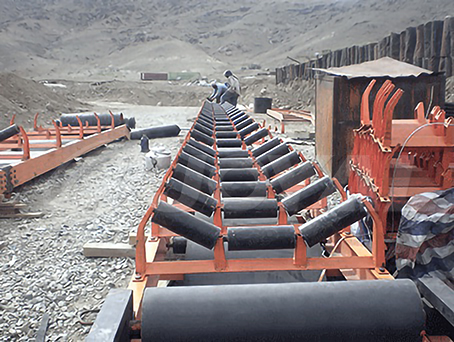

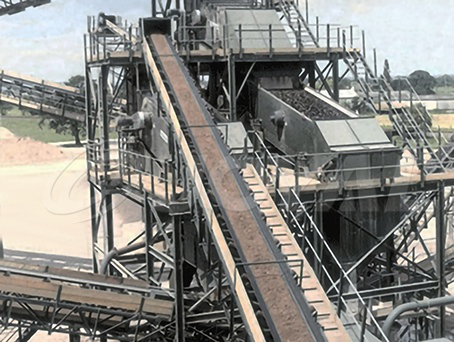

Recent Customers' Projects
