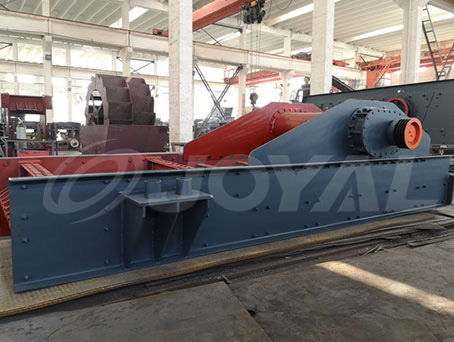

The JOYAL Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.
Applications: Vibrating feeders are widely used in crushing and screening production lines in metallurgy, building materials, chemical, coal, mineral processing, abrasives and other industries.
E-mail: joyal@crusherinc.com

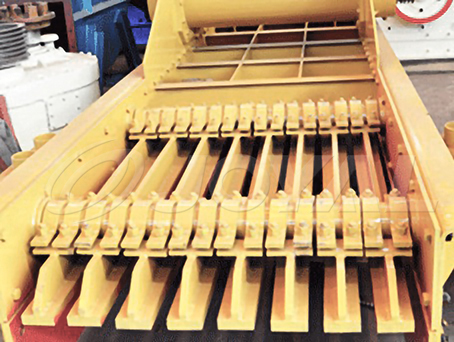

Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.
| Model | Feeding Chute Size (mm) | Max. Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (kg) | Overall Dimension (mm) |
| GZD-750×2500 | 750×2500 | 300 | 50-80 | 3 | 1590 | 2580×1100×1400 |
| GZD-850×3000 | 850×3000 | 400 | 80-120 | 2X2.2 | 3895 | 3110×1800×1600 |
| GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
| GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
| GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
| GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
| GZD-1500×6000 | 1500×6000 | 800 | 500-700 | 30 | 8670 | 6082×2995×2095 |
