Mobile Crushing Plant

Products

 Mobile Jaw Crushing Plant

Mobile Jaw Crushing Plant

Mobile Crusher

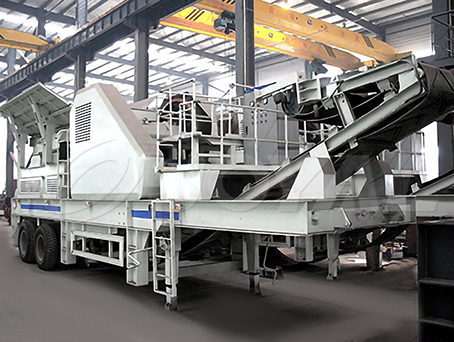

The JOYAL Mobile Jaw Crushing Plant is not limited to the location of crushing operation, and it reduces the cost of material transportation. The Mobile Jaw Crushing Plant can crush materials on site or somewhere near the work site.

Applications: For Primary crushing plants, there are PE&PEW jaw crusher and PF&PFW impact crusher of fine final product shape optional. Among them, PFW European type impact crusher boasts cubic shape finished products without tension and cracks.


Product Advantages

01

Multiple combinations, moving flexible, the trailer combining alternative equipment, can be tailor-made upon customer's demands.

02

Compared with the stationary plant, the mobile crusher has a shorter engineering period and rapider transition. To avoid the demolition and too much civil engineering work, make it more economical and environmental.

03

The mobile crusher has excellent value-holding capacity, easy to get invest return rapidly compare than stationary plant.

04

The machine can move in remote and rugged areas, greatly reducing the road construction cost.

05

Customer can choose independent operation and combination operation easily by upgrading the main units on the mobile trailer.

06

The hydraulic system and generator can be equipped as per the client’s request.

Application Industry

 Mobile Jaw Crushing Plant



{dede:field.title/}

Specifications - Technical Data

Model Vibrating Feeder Jaw Crusher Belt Conveyor Extended Belt Conveyor Capacity (t/h) Power (kw)

Overall DimensionL×W×H(mm)

Weight(t)
YG938E69

GZD960×

3800

PE600×900 B650×7M Optional 70-150 91.5 13200×2900×4700 42
YG1142E710

GZD1100×

4200

PE750×1060 B800×7M Optional 90-200 134 15000×3100×5100 55
YG1349E912

GZD1300×

4900

PE900×1200 B1000×7M Optional 150-300 146 17000×3300×5600 72
