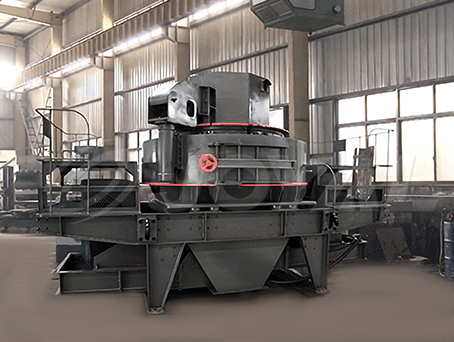

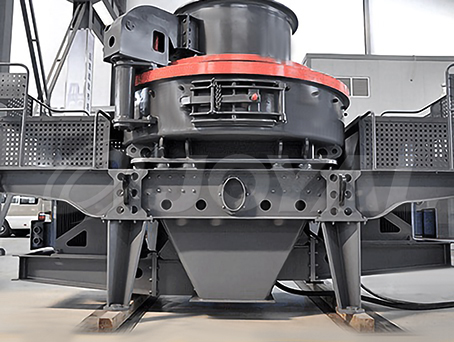

The JOYAL VSI Sand Making Machine is improved on the basis of Germany high technology, which is highly-efficient and superior in performance. The JOYAL VSI Crusher (sand making machine) is widely used to produce sand and stone for highway, high-speed railway, city project, hydropower dam constructions, and concrete mixing plant, and it’s also widely used in sand making and stone reshaping industry.

Applications: VSI sand making machine is used for highway, high-speed railway, high-rise building, municipal engineering, hydropower dam construction, concrete mixing station to produce sand and gravel aggregate, and it is the equipment in the field of artificial sand making and stone shaping.


Product Advantages

01

The VSI sand maker is equipped with a hydraulic opening device which facilitates checks and replacement of parts inside the crushing chamber.

02

The biggest capacity can reach to 520tons/hour, the yielding of VSI machine is increased 30% compared with the traditional PCL sand machine under same power. So as to the finished aggregates have excellent cubic shape, reasonable granularity, pretty good for artificial sand production and aggregate shaping.

03

Oil needed is supplied by two oil pumps, and the machine stops automatically if there is no oil; the motor can be heated automatically in winter to ensure the normal working of the machine.

04

Hydraulic lifting system to check and replace the spare parts, thus it’s very easy and simple to maintain.

05

The bearing is of SKF and TIMKEN brand to ensure the normal working of the machine.

06

Unique vibrating alarm device: if the machine works abnormally, the alarm will sound to stop the machine, thus protecting the whole machine.

07

Special feeding structure; rock on rock, and rock on iron to make the stones crushed and reshaped.

08

Unique design of material bumping angle reduces the friction between raw material and spare parts, extending the working life of spare parts and cut the cost.

Application Industry

VSI Sand Making Machine

Working Principle

1. Central feeding:Raw materials fall down into the feeding hopper, then enters the impellor through central entrance inlet, thus the material being accelerated by the high-speed impellor and being thrown out at the speed of 60-75m/s. It is crushed when hitting the impact plate, and the end products comes out from the discharging outlet.
2. Ring feeding:Raw materials fall down into the feeding hopper, and the materials are divided into two parts by a special plate. Some materials enter the impellor through the center of the plate and the other part of materials falls down from outside of the plate. The materials thrown out earlier crush the materials down from outside, thus the materials crushed and re-crushed.



{dede:field.title/}

Specifications - Technical Data

Model VSI-7611 VSI-8518 VSI-9526 VSI-1140
Capacity
(t/h)
Center and Sides Feeding 120-180 200-260 300-380 450-520
Center Feeding 60-90 100-130 150-190 225-260
Max. Feeding Size (mm) Soft Material 35 40 45 50
Hard Material 30 35 40 45
Rotation Speed(rpm) 1700-1890 1520-1690 1360-1510 1180-1310
Double Motor Power (kw) 110 180 264 400
Overall Dimension
L×W×H (mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778 5000×2700×3300
Weight (t) 7.8 10.3 16 25.6
Vibrating Sensor Inspection Range: 0.1-20mm/s Continual Adjustment
Hydraulic Oil Pump Motor Power of Double Oil Pump(Kw) 2×0.31kw
Overall Dimension
L×W×H (mm)
820×520×1270
Power of Oil Tank Heater 2KW

Recent Customers' Projects
