JOYAL PYD cone crusher transported to South America

The JOYAL Spring Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical

industry, building materials, metallurgies and so on. The Cone Crusher can crush materials with Moh’s scale in middle

and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB)

is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.
Features
1. High capacity and superior quality;
2. Long working life of quick-wear parts, and low investment;
3. Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time.
When the spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling,

transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing

bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The

raw materials are pressed, impacted and finally crushed in the crushing chamber.

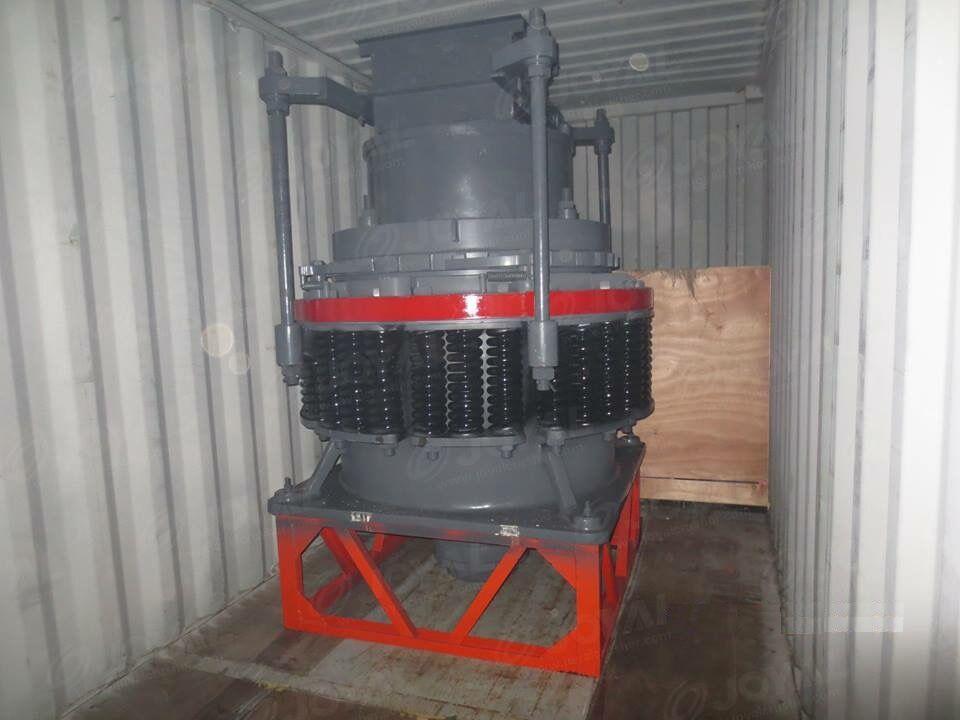

This customer transports the PYD short-head cone crusher.
The detailed data of this machine is as follows:
 Model:PYD600
 Max. Feeding Sizes (mm):35
 Adjustable Range of Output Size(mm):3-13
 Capacity (t/h):5-20
 Motor Power (kw):30
 Weight (t):5.5
 Overall Dimension (mm):2234×1370×1675
