Joyal jaw crusher found a new owner

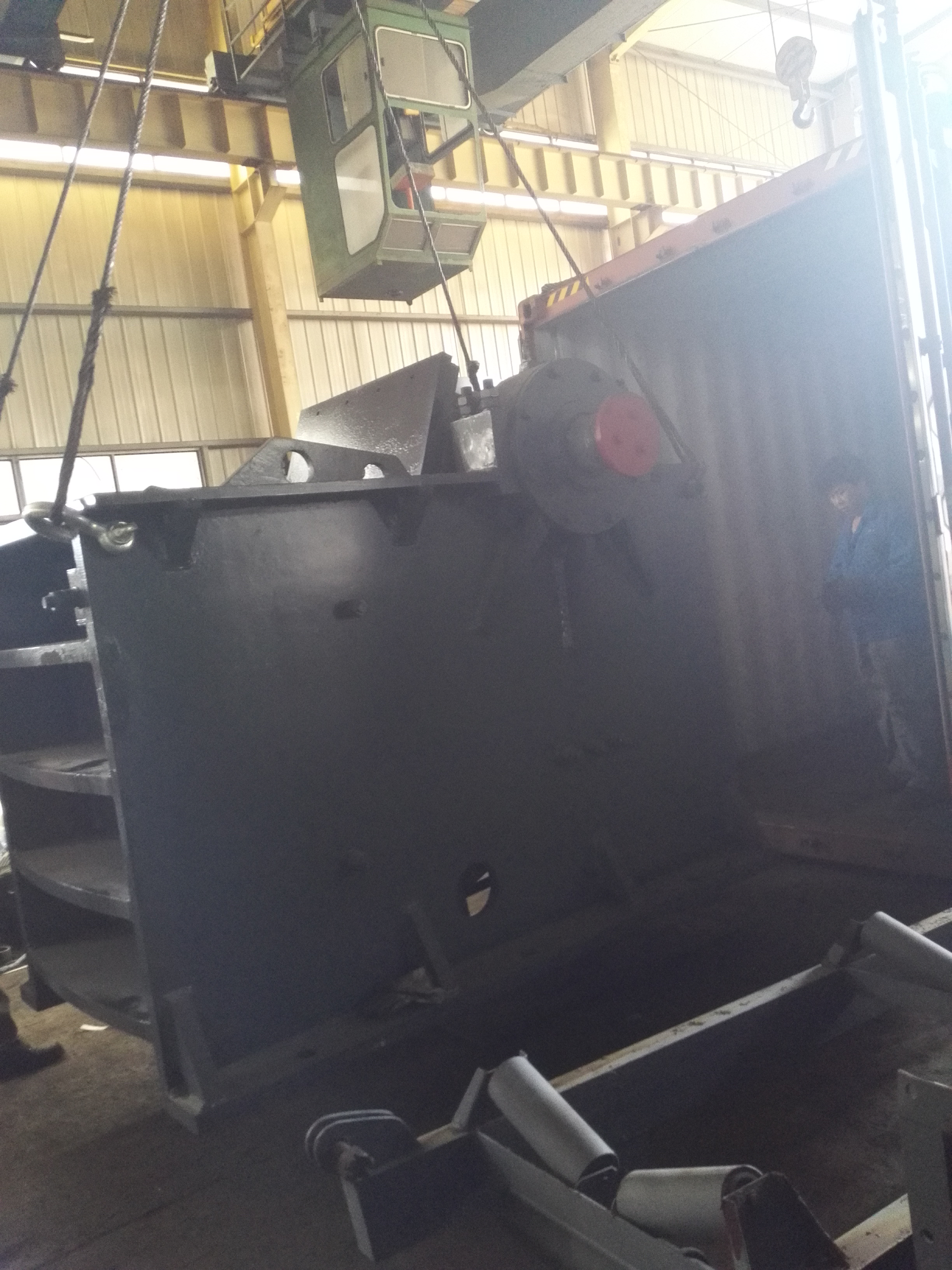

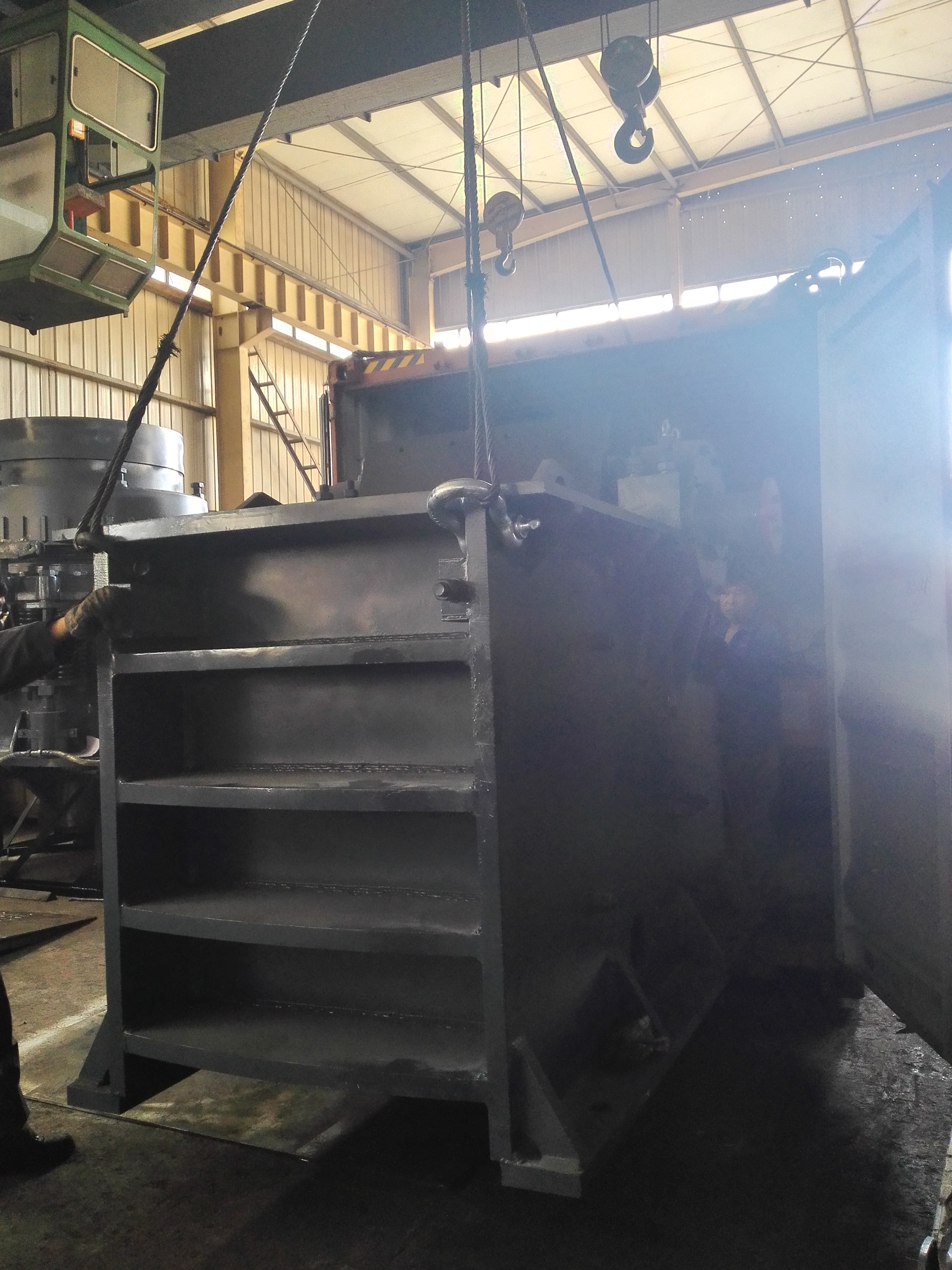

JOYAL jaw crusher PE600X900, PEX400X1200 found a new owner
Jaw crushers are widely used in mining, building materials, chemical, metallurgical and other industries. Jaw crusher is
Suitable for primary and secondary crushing of various minerals and rocks, compressive strength less than 320
The belt and belt pulleys are driven by an electric motor and the movable jaws move up and down through the

eccentric shaft.
When the movable jaw moves downward, the angle between the fixed jaw and the movable jaw becomes smaller, then

the material Broken into pieces. When the movable jaw moves up, it gets bigger. The movable jaw leaves the fixed jaw
Under the action of the rod and the spring, the final product comes out of the crushing chamber.

Product specification data:
PE600X900:
Feed port size (mm): 600x900
Adjustable range of output size (mm): 65-160
Quantity (t / h): 60-140
Dimensions (mm): 2290 × 2206 × 2370
PEX400X1200:
Feed port size (mm): 400X1200
Adjustable range of output size (mm): 35-95
Quantity (t / h): 28-95
Dimensions (mm): 2256 × 2100 × 1960
