Hammer Crusher

Hammer Crusher

Crusher

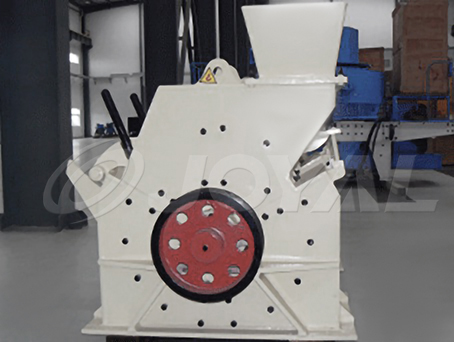

The Joyal Hammer Crusher is widely used in the industries of mining, building materials, chemical industry, metallurgies and fodder. The Hammer Crusher is applicable for secondary and fine crushing of materials with middle or middle minus hardness such as barite, limestone, terrazzo, silicasandstone, coal, coke, gypsum, aluminum sulfate, slag, etc.

Applications: PC hammer crusher is suitable for mining, building materials, chemical, metallurgy, feed and other industries.


Learn More About Hammer Crusher

1. simple to operate
2. high capacity
3. low investment

Working Principle

The rotor is driven by the motor to move, and the rotor drives the hammer board to rotate at a high speed, thus the materials crushed in the crushing cavity by the rotating hammer board. The end product comes out of the machine via the strips of screen. The size of the granularity can be adjusted by changing the space among the screen strips.

Specifications - Technical Data

Model Max. Feeding Size (mm) Output Size (mm) Capacity (t/h) Motor Power (kw) Weight (t)
PC400×300 100 <15 3-10 11 0.86
PC600×400 120 <15 8-15 22 1.55
PC800×600 150 <20 10-40 55 4.8
PC1000×800 200 <30 16-65 110 8.1
PC1300×1200 280 <40 50-200 240 14.8
PC1600×1600 350 <50 100-350 480 37.5
